Name: Pressurized150L Solar Geyser
SKU: 8670
Price: 12500.00 ZAR
Availability: InStock

Description

Capacity: 150 liters
Electric Control Unit
Electric Heating Element

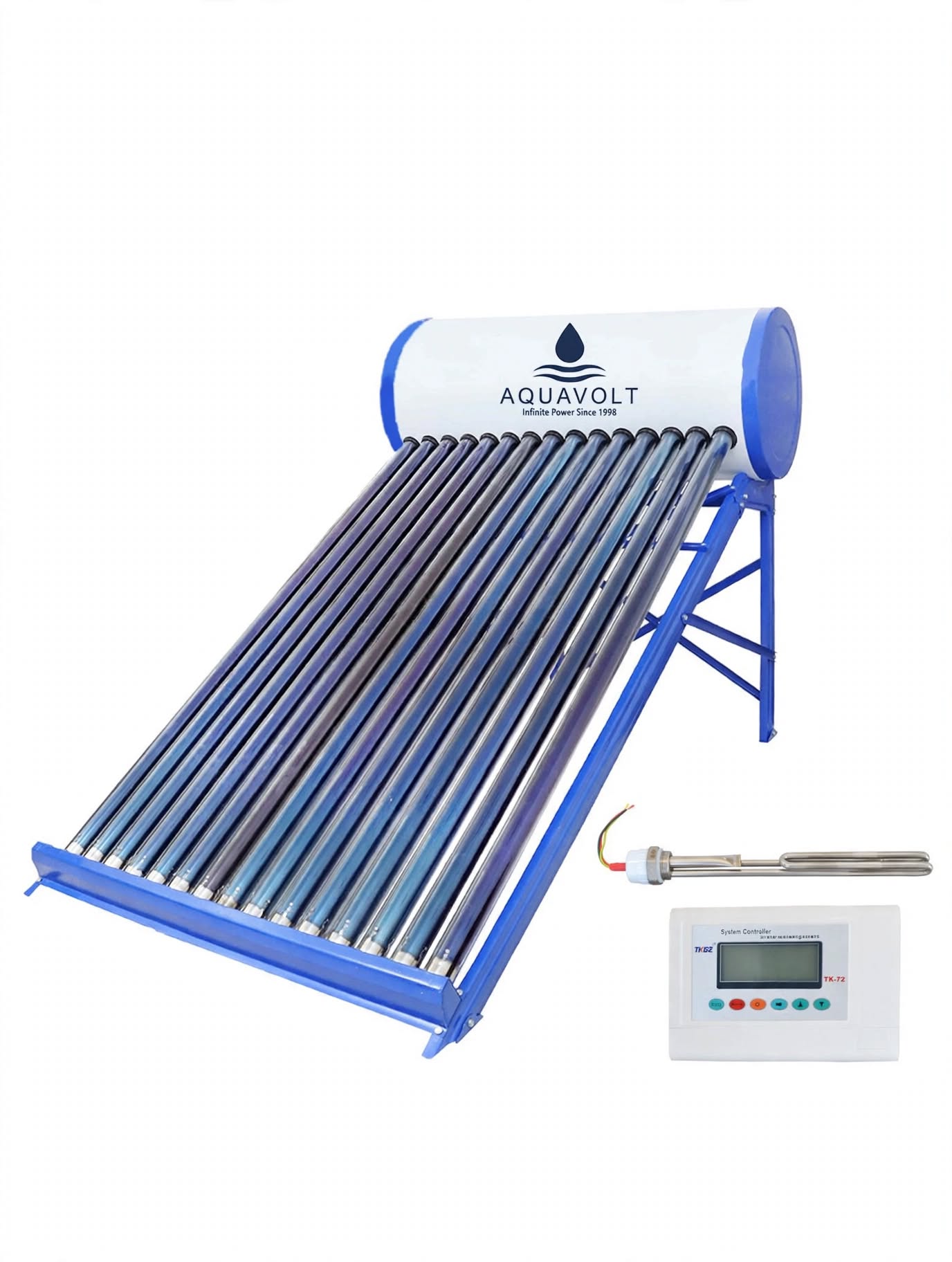

Aquavolt pressure solar geyser series consists of high-efficiency heat pipe tubes, a high-pressure water tank, a supporting bracket, element and electric control. The pressurized water tank features top-closed sleeves with heat pipe condensers inside. These heat pipe tubes absorb solar energy and facilitate indirect water heating through the sleeves heating.

150 liters water capacity.
Can be connected directly to tap water.
Can be used all year round in both hot & cold regions.
Simply structured, easy to assemble and install.
Reliable performance with average daily efficiency over 50%.
High pressure hot water supply from the storage tank.
The system can work with a missing tube.
The system is mostly installed on house roof.
Inner Tank: Stainless steel.
Outer Tank: Galvanized steel.
Three-Target glass vacuum tubes.
Insulated with Polyurethane.
High density polyurethane foam 50mm Insulation.
Galvanized steel bracket.
15 strengthened glass vacuum tubes.
Comes with a 12 months manufacturer’s warranty subject to terms & conditions.
Modular design and arbitrary combination that harmonizes with the building perfectly.

Controller Unit

Functions:

The controller is designed to control the water temperature.
Monitor water temperature.
Electrical heater can be integrated into solar system used as back-up of system
The adjustable range of switch-on temperature of heating is 30°C – (OFF-3°C), the adjustable range of switch-off temperature (On+3°С) ~ 80°C.
Manually control electric heater.
Automatically preset time by preset temperature.
The tank’s temperature can be automatically regulated. When the temperature drops below the preset level, the electric heating element will turn on, and the backup heating will activate. This system allows for automatic water heating using the electric heater when there is no sunlight.
